Red Aviation Obstruction Light
The Red Obstruction Lights are designed to mark tall structures that
present hazards to air navigation. When installed in accordance with FAA
AC 70/7Red Obstruction LED
Lighting technical specs.460–1, these lights increase the conspicuity
of obstructions for pilots flying at night.
Typical applications for red obstruction light include
water towers, cellular phone towers, antennas, smoke stacks, skyscrapers
and airport perimeter fencing. For the number and placement of lights,
the required duration of operation, and recommendations for specific
types of structures, refer to FAA Advisory Circular No. 70/7460–1K
860 Series Multi-Purpose LED Light fulfills the needs of
engineers and architects requiring a rugged, weather-proof
fixture in color alternatives to the standard red
obstruction lights. Available in green, yellow, blue and
white in 12, 24 and 48 VDC; and 120 and 220 VAC (50 and 60
Hz), these fixtures are equally at home in an
office building, on the Arctic Tundra, or a sailboat. Truly
the LED solution to your lighting challenges.
 recently
extended LED lighting technology to aviation-related
applications. We are the industry’s first and only supplier
of LED fixtures certified by ETL to be compliant with FAA
standards. Obstruction products include red flashing beacons
(L864) and steady-burning tower side lights (L810). Designed
primarily to easily replace incandescent lights in existing
installations, they feature state-of-the-art, high-flux LEDs
that use 90 percent less energy and last up to 10 times
longer, extending replacement intervals and reducing
maintenance costs.
|
Available as a single or dual unit
Available in 12VDC, 24VDC, 48VDC, 120VAC, and 220VAC
versions (50 or 60HZ)
Earth grounding provisions provided
Unique optically designed lens to enhance LED operation
and provide 360o visibility
State-of-the-art high-flux LED technology
Lasts years longer than an incandescent
Uses 90% less energy than an incandescent
Weather/corrosion resistant lamp assembly and housing
Self-contained wiring compartment eliminates additional
boxes
Threaded 1” and 3/4” bottom hub for mounting
Can be operated steady or flashed
5 year warranty
Resistant to shock and vibration |
|

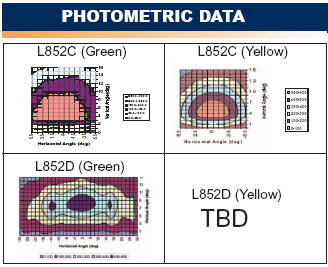

Photometric Data
 |

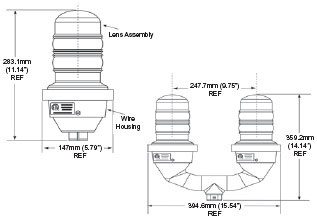

There are three basic models - the 810S with a single
lamp, 810SE with a single lamp and wiring enclosure and the 810DE with
dual lamps and a wiring enclosure. An optional photoelectric controller
will provide automatic lighting activation at dusk per FAA
specifications. In the dual lamp units an optional transfer relay
activates the standby lamp upon failure of the operating lamp.
The Models 810SE and 810DE feature a corrosion-protected die-cast
aluminum housing with a wiring enclosure for mounting on a 1" NPT pipe.
For ease of installation and maintenance all models are equipped with a
stainless steel tether securing the glass dome and a stainless steel band
providing tool-free access to the lamp.
|
|
