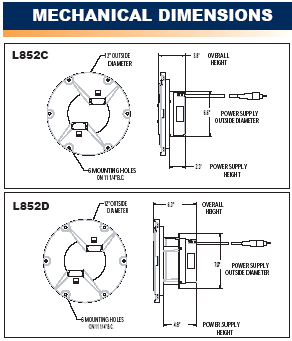

L852 LED BASED, Inpavement Taxiway Centerline Fixture

LED Based Inpavement taxiway centerline fixtures are designed for use for all airports requiring taxiway centerline. The fixture is used to denote the centerline of a taxiway for all airports that have Category III landing capabilities.

L852 LED BASED, In pavement Taxiway Centerline Fixture

• Designed to replace incandescent/halogen inpavement
  taxiway centerline fixtures

• Light output controlled to match tungsten-halogen
  fixtures

• “Fail Open” design allows electronic monitoring
  systems to sense fixture failures

• Can be installed on existing series circuits with no
  modifications to CCR or isolation transformer

• Mounts onto standard FAA L868 basecan

• Designed to exceed lightning protection requirements
  of AC 150/5345-10E

• Lightweight, sturdy, corrosion resistant, smooth
  outer surface housing

• Simple and minimal maintenance requirements offering
  longer intervals between maintenance and requires
  fewer spare parts, resulting in lower life cycle costs

• Extremely long life

• Does not create nor is affected by EMI/RFI

• Style III (less than .25 above ground) reduces
  fixture damage to aircraft tires and snowplow blades

• No optical adjustment required after replacing any
  component of the fixture

• No filters required so there are no color shifts
  when viewed at various angles or temperatures

• Eliminates need for filter replacement

• Rugged internal electronics mounted inside base

• Highly resistant to shock and vibration

• 5 year performance warranty to include photometrics

• Arctic kit available upon request


Technical Information On PDF Format

extended LED lighting technology to aviation-related applications. We are the industry’s first and only supplier of LED fixtures certified by ETL to be compliant with FAA standards. Airfield offerings are growing rapidly and currently include elevated taxiway and heliport perimeter fixtures. Designed primarily to easily replace incandescent lights in existing installations, they feature state-of-the-art, high-flux LEDs that use 90 percent less energy and last up to 10 times longer, extending replacement intervals and reducing maintenance costs

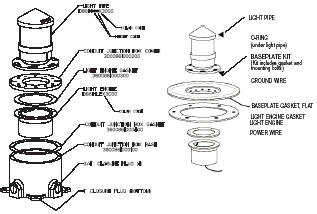

􀁓 Designed to replace incandescent elevated taxiway edge fixtures 􀁓 Fixture is designed to mount onto standard L867 base can with a 10.25” Bolt circle, or stake mounted, or with Dialight Junction Box 􀁓 Baseplate, Gasket & Mounting Bolts included 􀁓 Operates on 6.6A series circuit, or 120 VAC 􀁓 Standard Heights of 14”, 24”, & 30” 􀁓 Easily interface to existing airfield lighting circuits 􀁓 5 year performance warranty 􀁓 Weather/corrosion resistant lamp assembly and housing 􀁓 Leveling Kit available 􀁓 State-of-the-art high-flux LED technology 􀁓 Considerable power savings compared to incandescent 􀁓 Creates no EMI/RFI 􀁓 Lasts years longer than an incandescent 􀁓 Elimination of costly fixture and lamp replacement if impacted while also removing any exposure to potential electrical hazard 􀁓 Resistant to shock and vibration 􀁓 Emulates incandescent dimming curve

OVERALL HEIGHT APPROX. SHIPPING WEIGHT CONTAINER DIMENSIONS 14” 13.5lbs/6.1kg 12 1/4’’x 17 3/8”x8” 24” 14.5lbs/6.6kg 121/4’’x 26 1/4”x 8” 30” 15.5lbs/7kg 121/4’’x 32 1/4”x 8”
