Mounting Structures
Trackers increase PV Modules’ output by pointing them more directly
towards the sun throughout the day.
Trackers increase solar array daily power output by 25% or More. The
adjustable 'single axis' passive solar trackers follows the sun by
heated liquid flowing between east and west sealed canisters. The" no
drilled holes" rail attachment features stainless steel clips. these are
designed to withstand 90 mph winds, no high wind versions. Six universal
models:
Trackers increase PV Modules’ output by pointing them more directly
towards the sun throughout the day.
Trackers increase solar array daily power output by 25% or More. The
adjustable 'single axis' passive solar trackers follows the sun by
heated liquid flowing between east and west sealed canisters. The" no
drilled holes" rail attachment features stainless steel clips. these are
designed to withstand 90 mph winds, no high wind versions. Six universal
models:
COST EFFECTIVE
Track Racks increase the electrical output of photovoltaic modules by 25%
or more compared to modules on fixed mounts.
Specifications

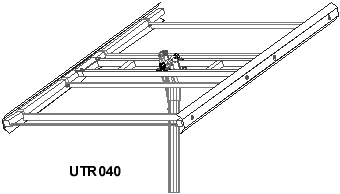

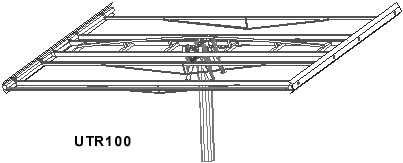

(Click model number to see schematic view)
|
Universal Track Rack Model |
UTR020 |
UTR040 |
UTR055 |
UTR070 |
UTR085 |
UTR100 |
|
Module Space |
20 sq. ft. |
40 sq. ft. |
55 sq. ft. |
70 sq. ft. |
85 sq. ft. |
100 sq. ft. |
|
Retail Price |
$490 |
$860 |
$1,235 |
$1,360 |
$1,605 |
$1,850 |
|
|
|
Shipping Dimensions |
Box (1) |
35" x 30" x 4" |
19" x 10" x 5" |
21" x 18" x 18" |
21" x 18" x 18" |
21" x 18" x 18" |
21" x 20" x 18" |
|
|
Box (2) |
72" x 13" x 5" |
115" x 15" x 7" |
127" x 15" x 7" |
134" x 16" x 7" |
156" x 16" x 7" |
168" x 15" x 8" |
|
|
Box (3) |
|
|
|
|
|
172" x 18" x 8" |
|
|
|
Shipping Weight (LBS/box) |
45/50* |
25/140 |
55/180 |
65/250 |
67/265 |
85/190/250 |
|
Assembled Dimensions |
67" x 36" x 24" |
107" x 67" x 24" |
107" x 99" x 24" |
119" x 115" x 24" |
142" x 115" x 24" |
169" x 115" x 24" |
|
Mounting Pole Dia. (I.D. Sch. 40) |
2.5" |
3" |
4" |
6" |
6" |
6" |
|
Recommended Max. Pole Height |
75" |
62" |
82" |
120" |
120" |
120" |
|
Recommended Min. Pole Height |
30" |
50" |
56" |
60" |
66" |
76" |
|
Recommended Pole Depth |
36" |
36" |
48" |
60" |
60" |
60" |
|
Recommeneded Hole Dia. Filled with Concrete is 3 times the diameter
of the pipe. |
|
Zomeworks assumes no liability for mounting pole installation. These
specifications are recommendations only. Local soil conditions will
vary which will affect the design. The structural integrity of the
pole installation is the owner's and/or installation contractor's
responsibilty. If you have any doubt consult a local structural
engineer. |
|
|
|
Number of J-clips Provided |
9 |
17 |
29 |
33 |
49 |
57 |
|
|
|
ASE |
50 AL |
3 |
6 |
10 |
12 |
14 |
18 |
|
|
|
Astro Power |
AP-1106/1206 |
2 |
4 |
6 |
8 |
10 |
12 |
|
AP-6105/7105 |
2 |
4 |
8 |
10 |
12 |
14 |
|
APX-90 |
2 |
4 |
6 |
8 |
10 |
12 |
|
APX-45 |
2 |
4 |
6 |
8 |
10 |
12 |
|
|
|
BP |
BP590 & BP275 |
2 |
4 |
8 |
10 |
12 |
14 |
|
BP 140 |
3 |
6 |
10 |
12 |
14 |
18 |
|
|
|
Helios |
H-800-X |
2 |
4 |
8 |
10 |
12 |
14 |
|
|
|
Kyocera |
KC-120 |
2 |
4 |
6 |
8 |
10 |
12 |
|
KC-80 |
2 |
4 |
6 |
8 |
10 |
12 |
|
KC-60 |
2 |
4 |
6 |
8 |
10 |
12 |
|
KY-51 |
3 |
6 |
10 |
12 |
14 |
18 |
|
|
|
Siemens |
SR100 & SR90 |
2 |
4 |
6 |
8 |
10 |
12 |
|
SP75 |
2 |
4 |
8 |
10 |
12 |
14 |
|
SM55 & 65 |
4 |
8 |
12 |
16 |
20 |
24 |
|
SM50-H |
4 |
8 |
12 |
16 |
20 |
24 |
|
SR50 |
2 |
4 |
6 |
8 |
10 |
12 |
|
SR50Z |
2 |
4 |
6 |
8 |
10 |
12 |
|
SM46 |
4 |
8 |
12 |
16 |
20 |
24 |
|
|
|
Solec |
S-90D/S-100D/S-110D |
2 |
4 |
6 |
8 |
10 |
12 |
|
SQ-080 & SQ-090 |
2 |
4 |
6 |
8 |
10 |
12 |
|
SQ-70 |
2 |
4 |
6 |
8 |
10 |
12 |
|
S-70 |
2 |
4 |
8 |
10 |
12 |
14 |
|
S-50 & S-55 |
4 |
8 |
12 |
16 |
20 |
22 |
|
|
|
Solarex |
MSX120 |
1 |
2 |
4 |
- |
6 |
8 |
|
MSX83 & MSX77 |
2 |
4 |
6 |
8 |
10 |
12 |
|
VLX80 |
2 |
4 |
6 |
8 |
10 |
12 |
|
MSX64 & MSX60 |
3 |
6 |
8 |
10 |
12 |
16 |
|
VLX53 |
3 |
6 |
8 |
10 |
12 |
16 |
|
|
|
Uni-Solar |
US-64 |
2 |
4 |
6 |
- |
8 |
10 |
|
US-42 |
2 |
4 |
6 |
- |
8 |
10 |
|
US-32 |
3 |
6 |
10 |
14 |
18 |
- |
