Street Light Fixtures

STREET LIGHT Fixtures

4800 Lumens, 3.4AMP, 12V 35W, SOX-E18 Lamp. Low pressure sodium-outdoor area light fixture, 12VDC, cast aluminum housing, polycarbonate diffuser, complete with 16 inch tenon mounting arm bracket. 24VDC units available. Part Number

STREET LIGHT is designed to take real punishment. Solid 8"W x 8"L x 3"D stainless steel enclosure; ½" thick clear acrylic lens; adjustable mounting bracket; 2" dia. x 1' to 3' long mast attached to a base plate w/4 drilled holes; weather proof. Auto Sunrise/Sunset on/off switch or timer is optional, as is a solar panel connection. Available with 72, 108, 144, or 252 LEDs, or made to order up to 1,000 LEDs. 12VDC, 110VAC or 230VAC.

IQ Solar LED Street Lighting
Self Contained
Easy Automatic dusk-to-dawn operation.
Eco Friendly
No electricity required!
***Withstand 160 MPH winds special order

Your next scheduled maintenance will be in 5 to 7 years!

Complete turn key Systems Solutions for Solar LED Lighting

-Made in USA OkSolar.com products proudly meet the Buy American Act.

-Illumination Engineering Society (IES) OkSolar.com lighting products follow guidelines set out by the IES, the recognized technical authority on illumination.

-International Dark-Sky Association (IDA) OkSolar.com product lines offer dark-sky friendly fixtures, helping to preserve and protect the nighttime environment through responsible outdoor lighting.

U.S. Green Building Council (USGBC) OkSolar.com is a proud member of the USGBC, an organization dedicated to sustainable building design and construction as well as the developers of the LEED building rating system.

All components needed for installation are included (except for the mounting pole optional). The systems are designed for installation onto a wood, concrete, or metal mounting pole. You may choose to use your own pole or we can quote the poles separately from the lighting system itself.

These units can be used for: Area lighting, School security, Billboards lighting, Dock lights, Park lighting, Parking lot lighting, Parkway lighting, walkway lighting, Street lighting, Transit Lighting, Outdoor area lighting, Security Lighting

-Complete turn key Systems Solutions for Solar LED Lighting
-Hurricane Proof LED Solar Lighting - Seismic Restraint Solar LED

Benefits:

- Esay installation
- No Wiring required. Installing and moving is easy
- No more waiting for the utility company!
- Proven technology.
- Vandal and theft-resistant components and hardware.
- All parts are corrosion resistant.
- Low installation cost.
- Easily and quickly deployed in almost any location.
- NO wiring run from the grid
- NO cuts through existing roads, sidewalks or landscaping.
- NO Maintenance
- NO Utility bill
- Maintenance Free Batteries!
- Big Credits and Savings form State and Federal Taxes.
- Component lifetime of 25 years
- Two-year full system warranty

SYSTEM OPERATION: The system converts the suns energy into electricity and stores it to provide up to twelve hours of light plus three days worth of backup energy.

Activation Switch On/Off: A microprocessor automates the functions of the system automatically activates form sunset to sunrise; has a timer, regulating the hours the light stays on; also regulates the battery, preventing overcharging and protecting against discharging. optional wireless on/off

Fixture Dimension: H 8 Meter approx.

Solar Cell type: Mono or Polycrystalline

Battery Type: Gel Deep Cycle, Valve-Regulated, Gelled-Electrolyte heavy duty Battery.

Reserve: 3 Days under Cloudy conditions

Light Source Type: IQLED High Power LED.

Operating time while fully charged: 8-10 hours per day x 2-5 continuous rainy days Daily For extended run times use we suggest adding Item# 160799

Extend your operating time: dusk to down (14-17 hours) you may have to add plug-in depending on your zone. Item# 160799

Daily Radiation Zone: Designed for Zone with 4-5 Hours of daily Insulation.

Temperature of work environment: Optimal Ambient -20 to +25 C (-4 to 77 F)

Maximum Ambient Temperature -40 to +80 C (-40 to 176 F) fluorescent fixtures in areas that experience temperatures of 5 F (-15C) or below is not recommended. USE LED fixtures

Installation recommendation: 85 Feet (25 Meter) distance for each Lamp

System includes:
-Fixtures
-Solar Panel.
-Structure for solar panel Pole mount Adjustable 0-90 horizontal and 360 about pole.
-Entire pole-mounted system is designed to withstand 90 MPH wind loads with 1.3 gust factor.
-Microprocessor controlled Charge controller and Timer.
-Batteries: Long-Life - Deep-Cycle - Maintenance-Free.
-Detailed instruction manuals included in every system.
-Packaging information: Pallet - Brown Box (Individual Packing for each part)
-Virtually Maintenance-Free Design.
-Vandal and Theft Resistant Components and Hardware.
-Expand your system: We have included components that allow for easy plug and play expansion units.
-Pole Not Included sold separately Pole - Space and Optics
-Arm Not Included sold separatly
-(Optional) Unbreakable Solar Modules
-(Optional) Wireless Remote Control Activation.

V7.77

OkSolar.com Affiliate

Sample Ready to ship unit

Solar Light Tower, Light Tower, Refugee Camps Solar Light Tower, mobile light towers, Job Site Solar Light Tower, Portable Solar Light Towers, Solar Powered Construction Light Tower,

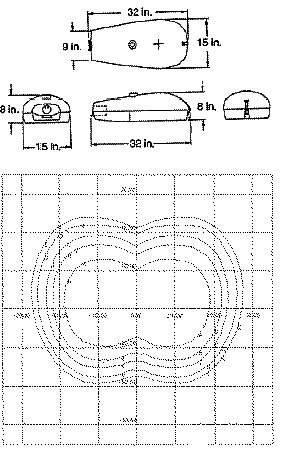

Cobra Head Cutoff

Reflector Die-Cast aluminum.
Electro cat gray finish.
Approximate weight-25#
Effective Projected Area EPA-1.1 sq ft
DISTRIBUTION PATTERN Information

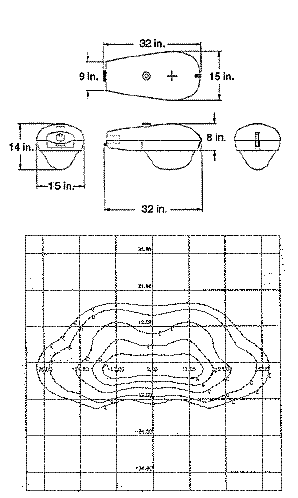

Cobra Head Dome

Reflector Die-Cast aluminum.
Electro cat gray finish.
Approximate weight-25#
Effective Projected Area EPA-1.4 sq ft
DISTRIBUTION PATTERN Information

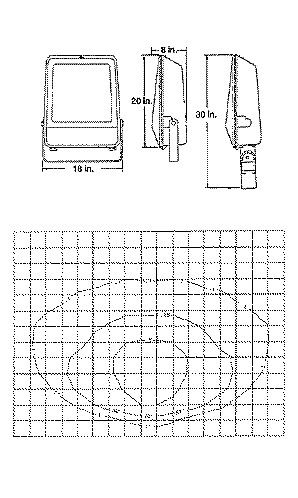

Power Flood

Aluminum reflector.
Die cast electro coat finish.
Built in quick aiming sight.
Approximate weight 21-30.
Effective Projected Area EPA 1.5 sq ft
DISTRIBUTION PATTERN Information
- Area Lighting.
- Flood Lighting.
- Safety and Security Lighting.
- Effective Projected Area EPA
- DISTRIBUTION PATTERN Information
