IQ IP Cameras systems Technical
Specifications

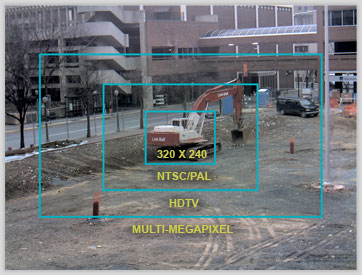

Multi-Megapixel Resolution
Better Coverage
The IQeye's ultra-high-resolution IP
Video images provide better camera
coverage, better picture detail and an
overall superior IP video experience.
Save money on installation, service and
support by using a single
Multi-Megapixel IQeye to replace
multiple fixed cameras or a
mechanical Pan, Tilt and Zoom camera.
Better
Recording
See crisp clear images on recorded
video, not blocky, blurry images. The
IQeye’s high resolution lets you record
and playback crisp, clear images with
your IP Video Network Video Record (NVR)
or Digital Video Recorder (DVR)* and
capture all the details.
Better
Viewing Experience
Replacing several cameras with a single
Multi-Megapixel IQeye IP Video system
improves the live and recorded viewing
experience by eliminating the need for
multiple monitors or complex, thumbnail
multi-view screens.
*Not all NVR/DVR products support
Multi-Megapixel IP Video resolution.
 |
|

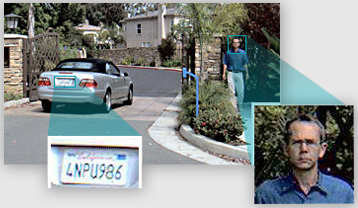

Digital Pan Tilt Zoom
(DPTZ)
Every IQeye includes digital
pan/tilt/zoom DPTZ. DPTZ was developed
to address problems with traditional
mechanical pan/tilt/zoom devices.
Mechanical devices let users redirect
the camera but only record what you are
zoomed in on. This can be a problem when
there is more than one subject in the
scene or if nobody is controlling the
camera.
The IQeye’s Digital Pan/Tilt/Zoom DPTZ
lets you virtually move around a large
image using a smaller viewing window.
Since it is virtual, you can still
record the entire scene in
Multi-Megapixel resolution even though
you may be digitally “zoomed in”. This
means you never miss a thing.
DPTZ also saves bandwidth. In many cases
you don’t need to view a Multi-Megapixel
image when you are accessing video over
a WAN or the internet. IQinVision’s DPTZ
enables you to view a much smaller image
that shows the entire field of view in a
smaller window. If you see something
that interests you, simply zoom
digitally and the IQeye’s
Multi-Megapixel resolution kicks in. As
you zoom in, DPTZ introduces more detail
so you don’t suffer the distortion
typical with other products.
|

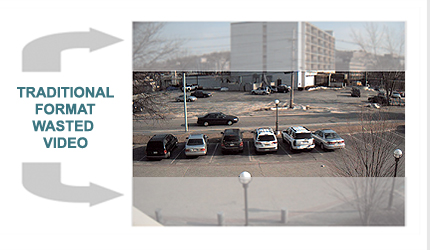

HDTV and Image Cropping
HD (High Definition), progressive-scan
TVs offer a better viewing experience
than traditional TVs. HDTV designers
understand that a wide-screen aspect
ratio like 14:9 or 16:9 represents
real-life more accurately than
traditional (4:3) format TVs. With the
Multi-Megapixel IQeye IP Video System
you can optimize each scene by cropping
the image to eliminate unwanted, wasted
video which also saves bandwidth and
storage.
 |

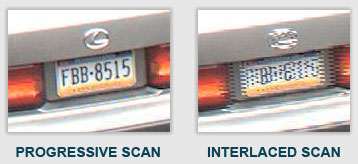

Progressive Scan
Better pictures when there is motion
Most traditional CCTV and IP cameras use
interlaced CCD imagers. Interlaced
cameras take two low-resolution pictures
then stitch them together to create a
higher resolution image. For still
pictures this works well but when there
is motion, the two pictures don’t always
line up which leads to a jagged, blurry
“tearing” effect. IQeye IP Video systems
use progressive scan CMOS imagers that
take multiple individual high-resolution
images. Since there is no “stitching”
the images captured are much clearer,
even when there is motion.
Lower Power
Consumption
Progressive Scan CMOS imagers use
less power than traditional CCD imagers,
this enables you to power IQeye IP Video
systems at up to 328’ (100M) over the
Ethernet. It also makes the IQeye an
ideal solution where power consumption
is critical, including battery, solar
and wind powered applications.
Better Lens Selection
Progressive Scan CMOS Multi-Megapixel
imagers utilize the latest in Infra-Red
(IR) mirroring technology. Most
traditional CCTV and IP cameras use IR
filters that get hot in bright scenes
and can burn the camera’s imager which
destroys the camera. Until now the
solution was to use mechanical auto-iris
(dc-iris) lenses that have moving parts.
IQeye Multi-Megapixel IP video systems
use a dichroic mirror that reflects IR
energy. It doesn’t get hot so you can
use reliable, fixed-iris megapixel
lenses.
|
|

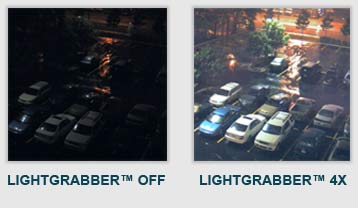

LIGHTGRABBER™
All IQeye IP video systems include
LIGHTGRABBERTM technology that provides
high-quality color pictures even in the
most demanding low-light conditions.
LIGHTGRABBERTM lets you optimize each
IQeye for sensitivity and motion in the
scene by utilizing digital frame
integration.
|
Bandwidth Management & Network
Management
Multi-Megapixel IP video is digital data
that takes up bandwidth so bandwidth
management is essential in designing a
cost effective IP video system. The
built-in intelligence of the IQeye
enables you to manage bandwidth in
several ways.
Image Cropping – traditional
surveillance systems can only display
4:3 ratio images. If you are trying to
view/record a wide field-of-view you
often view/record lots of unwanted video
like the sky or foreground. The IQeye
lets you “crop out” the unwanted
portions of the image which means less
bandwidth and longer storage capacity.
Bandwidth Throttle – with many IP video
systems you can’t predict how much
bandwidth it will use. Every IQeye
network camera lets you limit how much
bandwidth it will use so there are no
surprises.
Storage Throttle – IQrecorder embedded
Network Video Recording (NVR) software
lets you control how much storage each
IQeye will use. This unique feature lets
you use inexpensive network attached
storage (NAS) or your existing server
without worrying about using up too much
disk-space. It also enables you to
optimize your system, assigning more
disk-space to IQeye cameras in higher
activity areas.
Dynamic Resolution and Frame Rate -
IQrecorder embedded Network Video
Recording (NVR) software lets you switch
from low resolution, low frame-rate
rates to high resolution, high frame
rates when events occur.
On-Camera Video Motion Detection – Each
IQeye network camera includes
sophisticated multi-zone pixel-based
video motion detection. Most systems
require you to stream the IP video to a
central computer where motion detection
occurs. This means you are streaming
video over the network even when there
is no motion, which limits the number of
cameras you can put on the network. The
IQeye has motion detection built-in to
the camera so if there is no motion, you
aren't using any bandwidth.
Fewer cameras on the network – The
IQeye’s Multi-Megapixel resolution lets
you replace many conventional cameras
with a single IQeye. A single IQeye uses
less bandwidth than you would use with
multiple traditional cameras required to
achieve the same coverage at the same
resolution
|
Recording Options
Smaller Systems (9 cameras or less)
IQrecorder – Every IQeye is available
with IQrecorder recording/playback
software. This unique solution is
embedded in the IQeye so you don’t need
to load client software onto your PC. It
lets you record images to your network
server, network attached storage (NAS)
or on-camera using compact flash or a
micro-drive. IQrecorder provides many
sophisticated features including
pre-event/post-event recording,
time-date search and AVI export
functionality.
Enterprise wide (more than 9 cameras)
Multi-Megapixel Network Video Recording
(NVR) – There are a number of IQeye
ready NVR/DVR companies with products
that let you record, playback and manage
IP video from a variety of sources
including video servers and low
resolution IP cameras.Recording
Options
Dedicated PC using
IQrecorder or NVR
NVR/DVR that is megapixel ready
Common File Server using IQrecorder or
NVR
On-Camera with removable media and
IQrecorder
