Item# 394470
|
Range 2 to 10 Miles ( 3 to 16 km
)
Wireless controls and Remote Devices
by
GeneralCommunications.com
Range with flexibility and variety in
mind, so users can tailor long-distance links to their needs Long Range
Remote Control; field control operations, irrigation, lighting, parks,
gates, remote power generators, solar systems, water pumps, greenhouses,
remote monitoring, hazardous areas, telecommunications, security, etc.
remote monitoring, switching systems, networking, security, remote
control. Different models and channel combinations can be mixed and
matched to configure very sophisticated systems
|
|
Transmitters |
Receivers |
Handheld Medium
Range Remote
Item# 394474/75
 Digital
4 Channels Handheld Transmitter
Up to 2 Miles of Line-of-Sight Range, 65,536 Codes Features
Configurable as stationary transmitters.
Up to two miles of line-of-sight range.
configurable as 2-button panic transmitters.
configurable as 4-channel continuous output transmitter (for driving
left-right-up-down devices).
Includes belt clip.
Powered by two 9V batteries (supplied)
SPECIFICATIONS
Operating Temperature: -4° to +140° F (-20° to +60° C)
Operating Frequency: 27.255 MHz (North America) 26.995 MHz (International
and Canada)
Bandwidth: 6 KHz
Number of Codes: 65,536
Code Setting Method: DIP switch programming
Dimensions : 2.5in W x 5.5 in H x 1.30in D , Antenna 7in
RF Output Power: 2 Watts typical (North America), 2 Watts typical
(International & Canada)
Loop Response Time: 500 msec
|
Medium Range Remote
Digital Control System 1 Channel
Item# 394487
RECEIVER
2 Miles of Line-of-Sight range Up to 10 Miles with Long Range Antenna
Over 64,000 Codes, Weather-Resistant Case, Power On and RF Activity
Indicators

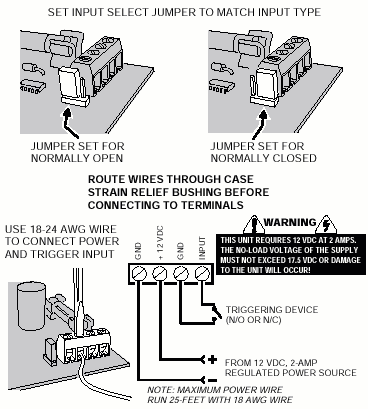

Wiring Diagram SPECIFICATIONS
Operating Voltage: 12 to 15.o VDC
Operating Temperature: -4° to +140° F (-20° to +60° C)
Receiver Type: Digital Superheterodyne
Sensitivity: -118 dB (minimum)
Selectivity: 6 KHz
Carrier Frequency: 27,255 MHz
Number of Codes: 65,536
Code Setting Method: DIP switch programming
Data Input: Alarm, restore, status, and low battery
Status Exception Time Frame: Four hours
Antenna Impedance: 50 Ohms Quarter Wave Antenna included
Dimensions: 4.25 in L x 2.5 in W x 6.25 in H (108 x 64 x 159 mm)
Weight: 1 lb. (0.454 Kg)
Current Drain: -25 mA, typical standby 65 mA alarm @
12 VDC
Outputs: Alarm - form "C" relay per channel Status exception - one open
collector output per receiver;
Low Battery - one open collector output per receiver (Audio and signal
strength test points)
Output provides isolated N/0 and N/C relay contacts capable of switching a
maximum of 1 Amp @ 32 VDC. The Low battery and status outputs are solid
state and are capable of switching up to 50 mA @ 20 VDC to ground
|
|
1 Channel Item# 394470
 Medium
Range Remote Digital Control System 1 Channel Transmitter
2 Miles of Line-of-Sight range Up to 10 Miles with Long Range Antenna
Weather-Resistant Case, RF Transmit LED
Accepts N/O or N/C Inputs, Complete RF Supervision, Field Enabled
Fully Supervised (loop status, low battery, link integrity), 65,536 Codes
Wiring Diagram SPECIFICATIONS
Operating Temperature: -4° to +140° F (-20° to +60° C)
Operating Frequency: 27.255 MHz (North America) 26.995 MHz (International
and Canada)
Bandwidth: 6 KHz
Number of Codes: 65,536
Code Setting Method: DIP switch programming
Operating Voltage: 12 to 15.0 VDC (power source not supplied)
Operating Current: Standby - 15 µA,
transmitting -2.0 Amps at 12 VDC
Temperature Range: -20º to +60º C (-4º to +140º F)
Dimensions: 4.25 in L x 2.5 in W x 6.25 in H (108 x 64 x 159 mm)
Weight: 1.5 lbs. (0.680 Kg)
Housing: black, weather-resistant, anodized aluminum enclosure with
removable end caps to provide wiring and programming access; end caps
secured with screws.
RF Output Power: 12 Watts typical (North America), 4 Watts typical
(International & Canada)
Loop Response Time: 500 msec
Code Transmissions: Alarm, restore, status, and low battery
Status Report Time Frame: 70 minutes
Transmit Time: 1 second
Antenna Impedance: 50 Ohms Quarter Wave included |
Medium Range
Remote Digital Control System 4 Channels
RECEIVER
Item# 394488
Miles of Line-of-Sight range Up to 10 Miles with Long Range Antenna
Over 64,000 Codes, Weather-Resistant Case, Power On and RF Activity
Indicators
Wiring Diagram SPECIFICATIONS
Operating Voltage: 12 to 15.o VDC
Operating Temperature: -4° to +140° F (-20° to +60° C)
Receiver Type: Digital Superheterodyne
Sensitivity: -118 dB (minimum)
Selectivity: 6 KHz
Carrier Frequency: 27,255 MHz
Number of Codes: 65,536
Code Setting Method: DIP switch programming
Data Input: Alarm, restore, status, and low battery
Status Exception Time Frame: Four hours
Antenna Impedance: 50 Ohms Quarter Wave included
Dimensions: 4.25 in L x 2.5 in W x 6.25 in H (108 x 64 x 159 mm)
Weight: 1 lb. (0.454 Kg)
Current Drain: -25 mA, typical standby 65 mA alarm @ 12 VDC
Outputs: Alarm - form "C" relay per channel Status exception - one open
collector output per receiver;
Low Battery - one open collector output per receiver (Audio and signal
strength test points)
Output provides isolated N/0 and N/C relay contacts capable of switching a
maximum of 1 Amp @ 32 VDC. The Low battery and status outputs are solid
state and are capable of switching up to 50 mA @ 20 VDC to ground
|
4 channels:
Item# 394473
Medium Range Remote Digital Control System 4 Channels
Transmitter
2 Miles of Line-of-Sight range Up to 10 Miles with Long Range Antenna
Weather-Resistant Case, RF Transmit LED
Accepts N/O or N/C Inputs, Complete RF Supervision, Field Enabled
Fully Supervised (loop status, low battery, link integrity) - 65,536 Codes
Wiring Diagram SPECIFICATIONS
Operating Temperature: -4° to +140° F (-20° to +60° C)
Operating Frequency: 27.255 MHz (North America) 26.995 MHz (International
and Canada)
Bandwidth: 6 KHz
Number of Codes: 65,536
Code Setting Method: DIP switch programming
Operating Voltage: 12 to 15.0 VDC (power source not supplied)
Operating Current: Standby - 15 µA,
transmitting -2.0 Amps at 12 VDC
Temperature Range: -20º to +60º C (-4º to +140º F)
Dimensions: 4.25 in L x 2.5 in W x 6.25 in H (108 x 64 x 159 mm)
Weight: 1.5 lbs. (0.680 Kg)
Housing: black, weather-resistant, anodized aluminum enclosure with
removable end caps to provide wiring and programming access; end caps
secured with screws.
RF Output Power: 12 Watts typical (North America), 4 Watts typical
(International & Canada)
Loop Response Time: 500 msec
Code Transmissions: Alarm, restore, status, and low battery
Status Report Time Frame: 70 minutes
Transmit Time: 1 second
Antenna Impedance: 50 Ohms Quarter Wave included
|
Medium Range Remote Digital Control System 16 Channels
 RECEIVER
Item# 394489
2 Miles of Line-of-Sight range Up to 10 Miles with Long Range Antenna
Over 64,000 Codes, Indoor use enclosure, Power On and RF Activity
Indicators
Wiring Diagram SPECIFICATIONS
Operating Voltage: 12 to 15.o VDC
Operating Temperature: -4° to +140° F (-20° to +60° C)
Receiver Type: Digital Superheterodyne
Sensitivity: -118 dB (minimum)
Selectivity: 6 KHz
Carrier Frequency: 27,255 MHz
Number of Codes: 65,536
Code Setting Method: DIP switch programming
Data Input: Alarm, restore, status, and low battery
Status Exception Time Frame: Four hours
Antenna Impedance: 50 Ohms Quarter Wave included
Dimensions: 7.9 in L x 1.25 in W x 6.5 in H (201 x 32 x 165 mm)
Weight: 1.5 lb. (0.680 Kg)
Current Drain: 300 mA (max) @ 12 VDC, typical standby 65 mA alarm @ 12 VDC
Outputs: Alarm - form "C" relay per channel Status exception - one open
collector output per receiver;
Low Battery - one open collector output per receiver (Audio and signal
strength test points)
16 outputs are all low current (100mA at 24VDC)
|
|
Range 1600 (458m) |
Safe Range
Remote Digital Control System 4 Channel TRANSMITTER
Up to 1500 Feet ( 450 m ) of Line-of-Sight Range
Features
Complete RF Supervision
Alarm, Supervisory, and Low Battery Transmissions
Unique "Extra" Top Button
High Visibility Operate LED
Lithium Batteries Supplied
Pocket/Belt Clip Supplied
SPECIFICATIONS
Dimensions: 4.2 in L x 1.6 in W x 0.8 in H (107 x 41 x 20 mm)
Power: Two 3V DL-2032 lithium batteries (supplied)
Current Consumption: Standby -- 1 mA; Alarm -- 8 mA average while
transmitting
Battery Life: Five years typical
Measured Range: 1,500 feet minimum, open air (four quadrant test into
936004 93008)
Accessories: Belt clip and pocket clip (supplied)
Number of Channels: 1 channel - top or front
Operating Frequency: 315 MHz
  |
Safe Range
Remote Digital Control System 4 Channel RECEIVER
Up to 1500 Feet ( 450 m ) of Line-of-Sight Range, Optional SR panel-mount
antenna kit
Reference Price Quantity .
936004 $149.95
FEATURES
Compatible with 6011 6014 6018 Transmitters
Measured Line-of-Sight Range of 1,500 Feet
Quick-Learn Programming, Selectable Supervision
Individual Outputs Per RF Channel and for Alarm, Low
Battery, and Status Trouble Reports (Connects to Base Panel)
7-Segment Channel Display (Decimal Point Indicates RF Activity);
LED Indication for Alarm, Low Battery, and Status
Over one million factory pre-set codes are available and all receivers
"learn" the transmitter ID
SPECIFICATIONS
Number of Channels: 4-Channels, supervised
Receiver Carrier Frequency: 315 MHz Bandwidth: 400 KHz typical
Receiver Sensitivity: -102 dBm typical at each antenna
Modulation: Type A1D, PPM (pulse position modulation)
Measured Range: 1,500 feet typical, with most standard stationary
transmitters
Transmitter Capacity: 32 total with any distribution between channels
(Note: learning multiple transmitters into any channel will defeat device
supervision)
CHANGE OUTPUT OPTIONS
Type: Open collector
Mode: Factory set to normally open; can be globally selected as normally
closed by internal jumper
Current Rating: 100 mA maximum per output point
Momentary: 4-second momentary closure on alarm
Toggle: Alternate alarm action (toggle on, toggle off)
Latch: Requires manual reset at receiver, or operates as a follower with
transmitters
DISPLAY OUTPUT
Channel Display: One 7-segment LED indicator; displays flashing center
dash in power on an standby; displays channel ID during alarm condition
along with alarm condition LED; automatically clears when alarm output
restores; displays "P" and channel ID during programming mode
RF Activity: Indicated by decimal point on 7-segment display; indicates
radio receiver activity; flashes with received data
Alarm Condition: Three LED indicators - alarm, low battery, and status;
displays conditions with corresponding channel ID Wiring Diagram
Operating Voltage: 10.2 to 14.4 VDC or 12 to 16 VAC
Operating Current: Standby: 30 Ma; Alarm: Up to 120 mA
Operating Temperature: 32° to 140° F (0° to 60° C)
Dimensions: 7.25 in L x 1 in W x 5 in H (185 x 25.4 x 127 mm)
Space Required for Installation: 7.5 in L x 14.0 in H
Antennae: Two, 9-1/2 in wire whip antennae (supplied)
Mounting Hardware: Four #6 x 1 1/4 in wood screws (supplied)
Receiver Operating Parameters:
Status Supervision: Monitored on each channel for hourly status
transmissions, reports status exception if no transmissions received
within last 8-hour time period; one common status output provided for all
channels; 7-segment display indicates channel where violation occurred;
exception set and cleared by channel
Enable Options: Status supervision enabled per channel; status enabled by
cutting proper jumper per channel; factory default disabled; Note: with
status supervision monitoring, it is not recommended to have more than one
transmitter learned per channel
Low Battery Supervision: Monitors each transmitter for low battery alarm;
reports if any learned transmitter low battery signal received; one common
low battery output for all transmitters; 7-segment display indicates
channel where low battery occurred; low battery set and cleared by
individual transmitters; transmitter that sends low battery report must
send a good battery signal to clear low battery condition
Program Mode: Enabled by program jumper; remove to enter program mode
Transmitter Learn: Momentary press and release desired channel learn
button; activate transmitter with five seconds to learn it into desired
channel
Memory Erase: Hold appropriate channel learn button for more than 10
seconds and release; transmitters learned into that channel will be erased
from receiver memory
Memory Interrogation:
Hold appropriate channel learn button for more than five and less than 10
seconds; alarm LED will flash the number of transmitters learned into
selected channels
|
Safe Range Remote
Digital Control System 8 Channel TRANSMITTER
Up to 1500 Feet ( 450 m ) of Line-of-Sight Range
Features
Complete RF Supervision
Alarm, Supervisory, and Low Battery Transmissions
Unique "Extra" Top Button
High Visibility Operate LED
Lithium Batteries Supplied
Pocket/Belt Clip Supplied
SPECIFICATIONS
Dimensions: 4.2 in L x 1.6 in W x 0.8 in H (107 x 41 x 20 mm)
Power: Two 3V DL-2032 lithium batteries (supplied)
Current Consumption: Standby -- 1 mA; Alarm -- 8 mA average while
transmitting
Battery Life: Five years typical
Measured Range: 1,500 feet minimum, open air (four quadrant test into
936004 93008)
Accessories: Belt clip and pocket clip (supplied)
Number of Channels: 1 channel - top or front
Operating Frequency: 315 MHz
|
|
Select Compatible Receivers: 1 Ch Receiver 4 Ch Receiver 16 Ch Receiver
Optional Long Range Antenna AC Adapter
ndustrial wireless controls, industrial radio control, industrial
controls wireless, industrial radio control, industrial radio remote control,
industrial wireless control, remote controls, belly box transmitter, wireless
remote control, wireless controls, radio controls, radio remote controls, crane
control, remote crane control, crane remote control, monorail remote control,
overhead crane control, concrete pump control, conveyor remote control, conveyor
control, remote winch control, wireless winch control, remote boom control,
remote relay control, relay remote control.
 Note:
To view the above PDF documents, you will need the
free Adobe Acrobat
Reader
industrial wireless controls, industrial radio control, industrial controls
wireless, industrial radio control, industrial radio remote control, industrial
wireless control, remote controls, belly box transmitter, wireless remote
control, wireless controls, radio controls, radio remote controls, crane
control, remote crane control, crane remote control, monorail remote control,
overhead crane control, concrete pump control, conveyor remote control, conveyor
control, remote winch control, wireless winch control, remote relay
control, relay remote control !
|
