MorningStar Sunlight's the world's leading solar
controller for both professional and consumer
applications:
Here are some applications for the Sunlight's solar charge controller, charge
controller, battery charge controller, battery controller
The SunSaver is the most advanced small PV charge controller
available today.
Rated for 6.5, 10 and 20 amps (12V and 24V), the SunSaver is
priced lower than competitive PV regulators. Yet, the SunSaver includes standard
features and capabilities not found in any other small PV controller. These
include:
- Extremely High Reliability
- Full, continuous current ratings at 60° ambient temperatures.
- Advanced lightning and transient overvoltage protection.
- Reverse polarity protection.
- High quality surface-mount components.
- Series switching design for improved safety and protection.
- Outstanding PWM Battery Charge Control
- Confirmed increase in battery capacities and operating life.
- PWM Pulse charging for highest charge acceptance.
- Standard temperature compensation.
- Standard Sealed / Flooded battery select at the terminal.
- Accuracy to millivolt levels.
- Highest Levels of Quality
- Approved for use in Hazardous Locations: Class 1, Div. 2, Groups A-D.
- Built in a world class ISO 9002 certified facility.
- Automated production so every unit is exactly the same.
- Parts soldered to .0006 inch accuracy.
- Anodized case, marine terminals, custom potting material.
Morningstar's SunLight is the world's leading solar lighting
controller. We have combined all the advantages of our SunSaver charge
controller with some unique lighting control features.
- Includes all the advantages of the SunSaver charge
controller. Please refer to the SunSaver product information for more details.
- Unique Lighting Control Features

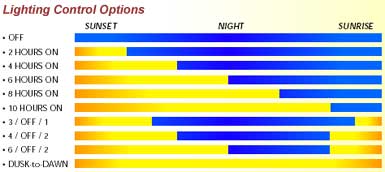

- Using solar array voltage to determine day and night, the SunLight
provides 10 different lighting control options.
- By measuring the length of the night, the SunLight's ON/OFF/ON options
provide the capability to turn on the light at sunset, turn off the light
after 3 to 6 hours, and then turn on the light again for 1 or 2 hours before
sunrise.
- The length of the night is calculated by taking a moving 4 night
average, and thus automatically adjusts for seasonal changes in the length
of the night.
- The test button helps the installer by blinking the red LED to confirm
correct selection of lighting control option, and also turns on the light
for 5 minutes to verify that the light is operating correctly.
- Timer accuracy is within 2 seconds.
- The SunLight is available in 10A or 20A, and at
12VDC or 24VDC
- For solar arrays greater than 20A, the SunLight may
be used in parallel with the SunSaver controller (lighting control limited to
20A).
This technology provides:
- Proven Reliability
- Precise Lighting Control
- PWM Battery Charging
Special Features:
- Rotary digital switch to select among 10 lighting options
- Special on/off/on functions
- Test button turns lights on for 5 minutes
- Timer accuracy is within 2 seconds

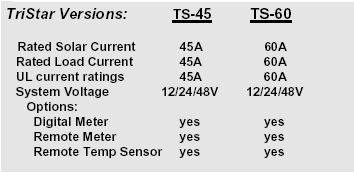

Morningstar's TriStar is the world's leading solar controller for both
professional and consumer applications:
The controller is a three-function controller that provides reliable solar
battery charging, load control or diversion regulation
Uses advanced technology and automated production to provide exciting new
features at a competitive cost
The controller is UL listed and is designed for both solar home systems and
professional applications
Click Here for Data Sheet -->>Controllers
Morning Star Tri-Star
