NEXT GENERATION PARKING GATE
WITH INHERENT BACKUP Powered by Solar Energy.
 DC Solutions Inc. and OkSolar.com
have teamed up to bring you Mega Arms security gates that use solar energy
to power the system. These systems require less maintenance because they
require no electrical wiring which means that they are independent from
the power grid.
Benefits:
- Proven technology.
- Vandal and theft-resistant components and
hardware.
- Low installation cost.
- Easily and quickly deployed
in almost any location.
- NO run Wiring from grid!
- NO cuts through existing roads,
sidewalks or landscaping.
- NO Maintenance
- NO Utility bill
- Maintenance Free Batteries!
- Big Credits and Savings form
State and Federal Taxes.
- Environmentally Friendly
Make peace with Mother Nature -
consult our expert staff to see how you can benefit from the
use of our waste-free, Solar energy products.
More info
The following models are engineered to provide optimum performance in
specific solar radiance zones. To choose the system that will best suit
your needs, refer to the map below.
| US Zone
|
Country
Area |
Model # |
| 4 |
Phoenix & San Antonio |
24V40W |
| 3 |
Kansas
city |
24V75W |
| 2 |
Minneapolis
/
St. Paul: |
24V120W |
| |
|
|
|
Equipment list |
-
Solar Panels.
-
Charge Controller.
-
Deep Cycle Batteries.
-
Structure.
-
Pole (Optional)
-
Enclosure (optional)
|
|
World Zones for
Daily Radiation Performance Information |
This map divides the world into five solar performance regions
based on yearly averages of daily hours of sunlight and ambient
temperature. Each specific site will, of course, be different
Also, local weather conditions and seasonal changes can
significantly affect the amount of sunlight available.
USA:
The average daily solar radiation available in a few
representative cities of the US. It shows a clear variation in
the availability of the solar resource in different areas of the
country.
(info provided by NREL).
|
|
Zone 1
Low Solar Radiation |
Zone 2 |
Zone 3
|
Zone 4
High Solar Radiation |
World Daily Solar
Insolation Map.
This map shows the amount of solar energy in
hours, received each day on an optimally tilted surface during
the worst month of the year.
Solar electricity generated worldwide (source:
www.bpsolar.com)
|
|
Test Conditions:
of 1.5 air mass spectrum; 20 degrees C ambient air temp; 1 sun (1000 watts
per square meter at POA irradiance); 1 meter per second wind speed at 10
meters above grade) |
|
|
|
Sun Path for Chart
40 North Latitude
 |
  |
DC Solutions Inc,
More Info.
MADE
IN USA
Patented Design |
 |
|

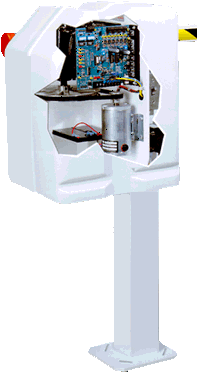

The
MEGA ARM
by DC SOLUTIONS, INC. was made to be
unique in the industry through innovative design
and solid engineering. Its single State of the
Art universal electronics control board
eliminates the need for mechanical limit
switches, relays and contactors. Arm position is
limited by a magnet mounted on the drive shaft
which is sensed by two magnetic sensors on the
electronics controller. Its full service
controller is capable of accepting inputs from
telephone entry, loop detectors, card readers,
push buttons, barcode scanners, and is equipped
with multiple vehicle memory buffer. Built in
regulated 24VDC backed up power provided for
accessories (detectors, receivers, card
readers). The standard break away arm design can
allow the arm to be reused many times. Finally,
its modern design and cutting edge technology
will make the MEGA ARM the perfect choice for
all your parking control applications.
|
|
|
