Solar Energy StatPower 2.5KV

PROsine 2.5 and 3.0 Inverter/Charger

An advancement in the field of inverter/charger combination products, the PROsine 2.5 delivers true sine wave output, giving the user clean, reliable electric power that is, in many cases, better than grid power from the local electric utility company. The PROsine 2.5 provides 2500 watts continuously and surges to 4000 watts. It also carries a 100 amp continuous duty, ripple-free, multi-stage battery charger that will recharge your batteries quickly and efficiently the first time...everytime! Available in 12V and 24V versions.

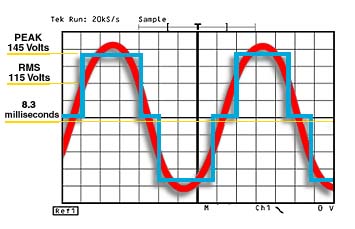

• Clean AC power - true sine wave output for sensitive loads
• Light weight - for ease of installation
• Totally silent - for quiet operation
• Clean DC output - filtered output for ideal battery charging
• High surge capability - for difficult AC loads

Functions of the PROsine 2.5 Inverter/Charger:

Inverter Function:

When the PROsine 2.5 Inverter/Charger is in inverter mode, it draws power from a battery and delivers a true sine wave AC output that is the same as or better than the waveform supplied by your local electric utility. In some cases, the PROsine 2.5 Inverter/Charger can deliver an even more stable waveform than your utility-supplied power due to the extensive control circuitry incorporated in the design of the unit.

Charger Function:

The"smart" charging capability of the PROsine 2.5 Inverter/Charger provides a multi-stage charge to quickly bring back deep-cycle batteries to their full charge. Using microprocessor control, the PROsine 2.5 Inverter/Charger precisely regulates the voltage and current delivered to the battery, accurately charging the battery without risk of overcharging and battery damage. Depleted batteries are taken through the recommended "Bulk", "Absorption", and "Float" stages and a manually set "Equalize" stage is available to bring flooded batteries up to their peak capacity. The charging algorithm used in the PROsine 2.5 Inverter/Charger is based on the same charge cycle algorithm used in Statpower's proven TRUECHARGE battery charger line.

Automatic Transfer Switch:

An integral 30 amp rated relay has two functions. When utility AC power fails or is disconnected from the unit, a quick 20 millisecond (maximum) transfer takes place (16 ms typically) and the PROsine 2.5 Inverter/Charger begins inverting, delivering AC power to the loads. When utility AC becomes present again, the control circuit waits for 8 seconds, during which time the unit verifies the stability of the AC source and synchronizes the inverter to the AC source for a smooth, seamless transfer. Battery charging will begin and AC is also fed through the unit to power the AC loads.

Remote Control Panel:

The Control Panel provides basic control and display information, so you can monitor the status of the PROsine 2.5 Inverter/Charger unit and your electrical system. The standard Remote Control Panel is included with the PROsine 2.5 Inverter/Charger unit. There's no need to pay extra for remote monitoring and control.

An optional Advanced Control System (ACS) panel is available for the PROsine 2.5. Call Statpower for more information on this option.
