Our DLS Line of 220VAC/DC
Power Converters provide 220VAC conversion to
12VDC with three different amperage levels
available.
DLS-220-30 30 Amp DLS power
converter and battery charger for 220VAC from
Iota Engineering for clean, efficient conversion
Advanced power electronics enabling delivery of
electricity anytime anywhere!
DLS-220-30 30Amp Battery charger for
220VAC
Features include:
Switch-Mode Technology
Low and Transient AC Line Voltage
Protection
Exceptionally Clean DC Output
Reverse Polarity Protection
Proportional Fan Control
The DLS-220-30 features a Dual Voltage
Jack which allows switching from a
long-term float voltage of 13.6vdc to a
14.2vdc rapid charge by simply inserting
the dual voltage plug (included) into
the jack.
The DLS-220-30 is also available with an
IQ Smart-Controller already integrated
into the unit, providing
"smart-charging" capability and
increasing the performance of the DLS. |
DLS-220-30 45 Amp Battery charger
for 220VAC
Features include:
Switch-Mode Technology
Low and Transient AC Line Voltage
Protection
Exceptionally Clean DC Output
Reverse Polarity Protection
Proportional Fan Control
The DLS-220-45 features a Dual Voltage
Jack which allows switching from a
long-term float voltage of 13.6vdc to a
14.2vdc rapid charge by simply inserting
the dual voltage plug (included) into
the jack.
The DLS-220-45 is also available with an
IQ Smart-Controller already integrated
into the unit, providing
"smart-charging" capability and
increasing the performance of the DLS. |
DLS-220-30 55 Amp Battery charger
for 220VAC
Features include:
Switch-Mode Technology
Low and Transient AC Line Voltage
Protection
Exceptionally Clean DC Output
Reverse Polarity Protection
Proportional Fan Control
The DLS-220-55 features a Dual Voltage
Jack which allows switching from a
long-term float voltage of 13.6vdc to a
14.2vdc rapid charge by simply inserting
the dual voltage plug (included) into
the jack.
The DLS-220-55 is also available with an
IQ Smart-Controller already integrated
into the unit, providing
"smart-charging" capability and
increasing the performance of the DLS. |
Item#
36267
|
220V DLS Models provide a
three-prong power cord terminal for
connection to the AC power source. The
cord is not provided. Consult your local
supplier for the AC cord that matches
your individual requirements. This unit
is not UL Listed |
Take your
DLS Battery Charger
to the next level...
The IQ Smart Controller offers
automatic charging control for
DLS Battery Chargers, providing
longer and safer use of your
system's battery. The IQ Smart
Controller is compatible with
any DLS Battery Charger model
and is covered under our
standard Two-Year Warranty.
|
The IQ Controller allows the the
DLS Charger to operate as an
automatic 3-stage
"smart charger." This gives the
customer the benefit of Bulk,
Absorption, and
Float stage charging, increasing
the charging capacity of the DLS
charger and decreasing charge
times, insuring proper and safe
battery charging and minimizing
over-charging. This "smart"
technology monitors the battery
at all times. If the DLS voltage
remains in the long term stage
for more than seven days, the IQ
will automatically deliver a
boost charge for a predetermined
time, then automatically return
to the normal float stage.
|
|
 |

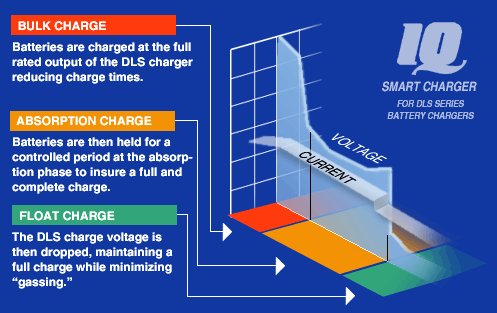

Reduced Charge Times
The Bulk Stage allows the
batteries to be charged from the
full rated output of the DLS
charger. During this stage the
batteries are recharged quickly
to reduce charge times
|
Increased Battery Capacity
After the Bulk Stage, the
batteries are held in the
Absorption Stage for a
controlled period, insuring a
full and complete charge.
|
Reduced Battery Stress
During the Float Stage, the DLS
charge voltage is reduced. This
minimizes gassing while
maintaining a full charge at the
nominal rate of the battery.
|
Weekly Equalization for
Longer Battery Life
If the batteries have not
received a "smart charge" during
a seven-day period, the IQ
Controller will switch the DLS
charger into a pre-programmed
equalization stage to top off
the batteries, dissolving any
sulfate layer on the battery's
internal plates and avoiding
stratification.
|
LED Indicator
The LED Indicator on the IQ4
informs the user as to the
status of the battery and the
charging stage. When first
activated, the IQ4 will read the
number of cells in the battery
and indicate the voltage of the
battery through a number of
flashes.
6 flashes = 12 volt battery
12 flashes = 24 volt battery
18 flashes = 36 volt battery
24 flashes = 48 volt battery
After reading the battery, the
IQ4 will initiate either a Bulk
Charge phase or Float Charge
phase depending on the battery's
charge status. When the IQ4 is
in the Bulk Charge mode, the
green LED indicator will flash
rapidly. When the Bulk Charge is
complete, the IQ4 begins the
Absorption Charge and the LED
indicator will flash at a slower
rate. When the battery charging
is complete and the IQ4 begins
the Float Charge, the LED will
remain lit and no longer flash.
If, when first activated, the
battery is not in need of
charging, the IQ4 will
immediately begin the Float
charge phase and the LED will be
remain lit after it has counted
the battery cells.
|
Charging Voltages
The charging voltages used to
charge the battery during the
three stages differ depending on
the voltage of the battery being
charged. If you are interested
in knowing the various voltages,
they are easy to calculate.
Follow the simple steps below:
1) Determine the number
of cells your battery has by
counting the flashes on the IQ4
when it is first activated (1
flash = 1 cell)
2) Multiply the number of
cells by the appropriate voltage
for the individual charging
stage. Use the table below for
reference:
|
Charging Phase |
Voltage Charge per Cell |
| Bulk
Charge |
2.46 |
|
Absorption Charge |
2.36 |
| Float
Charge |
2.26 |
Example: A 12V battery (6
cells) will Bulk Charge at
14.76V (6 x 2.46).
|
|

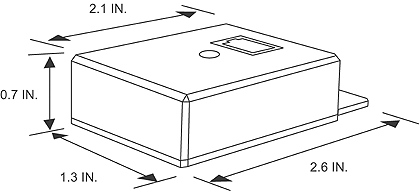

EXTERNAL IQ DIMENSIONS
|
|
 |
Most DLS Models are available
with the IQ Smart Charger
already internally integrated

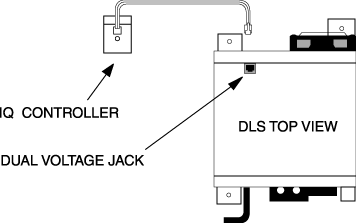

within the unit. External IQ
models can be installed by
simply plugging the IQ cord into
the Dual Voltage jack located on
the top of the DLS Models. The
IQ circuitry is then
automatically engaged. For
connecting an IQ Smart
Controller onto prior DLS Models
that do not feature a Dual
Voltage jack, contact our
Technical Support and Customer
Service Team to see about
supplying an IQ Controller
compatible to your DLS Model
requirements.
|
 |
|
