OkSolar High IQ Simple Connections line of
Controllers Microproccessor
Connections are simple follow the pictures
-
Connect slots 4 and 3 (SOLAR) to solar panels.
-
Connect slots 1 and 2 (BATTERY) to the battery.
-
Connect slots 5 and 6 (LOAD) to the lamp.
|
|
Enclosures: Installations

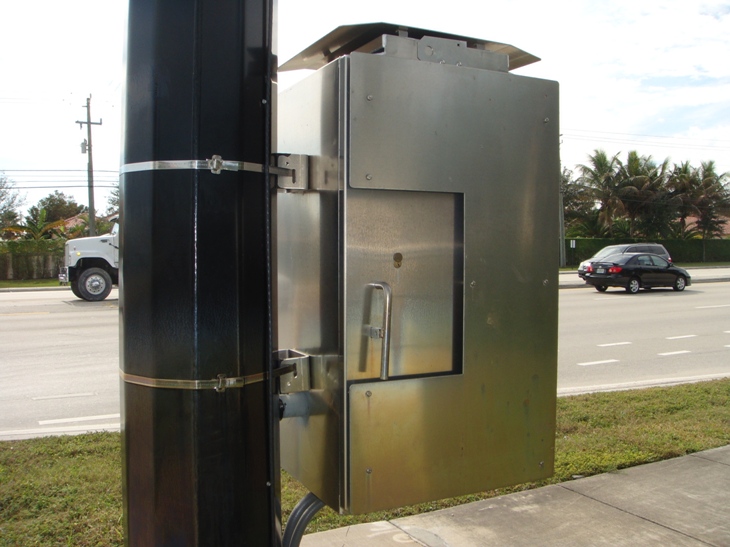

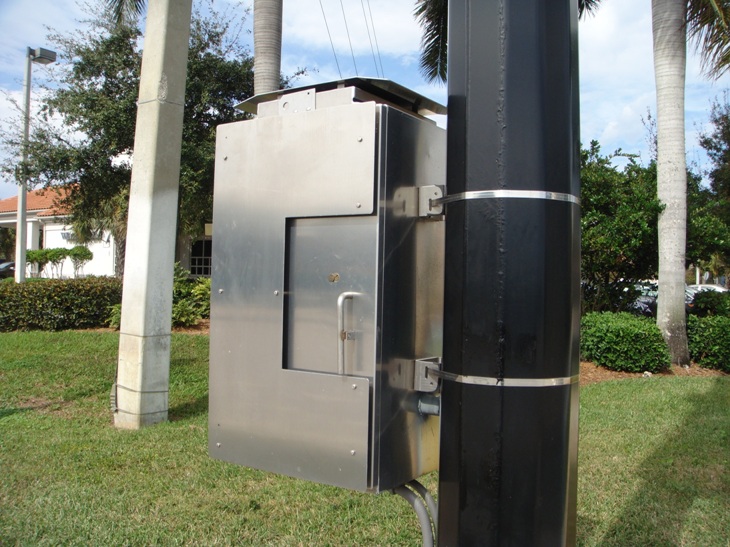

Enclosures Mounting Instructions
Enclosures Buried Batteries for LED Solar Systems
(7 Inches Minimum Gravel Base.)
- Customers have poured concrete boxes into the ground and then placed
a OkSolar Box inside the concrete box. Air ventilation provisions and
drain system on the bottom (to be
addressed by the installer according to the particular application) are
recommended for these types of installations.

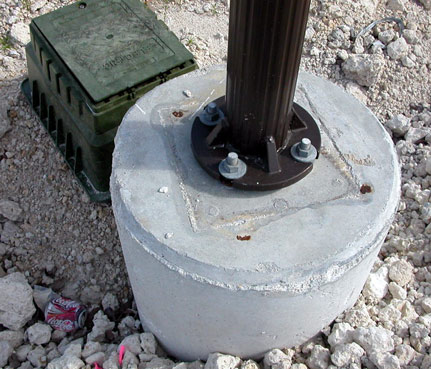

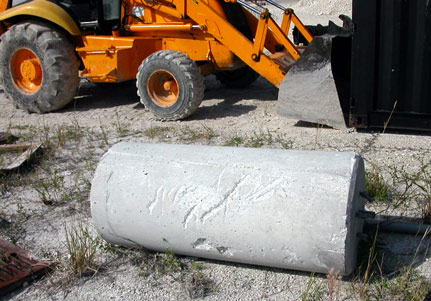

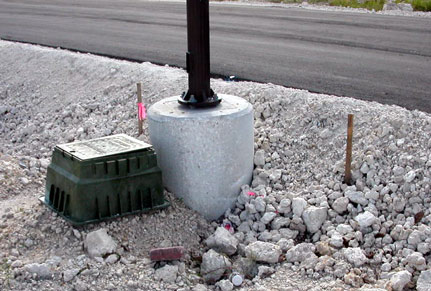

- Foundation in Figure is given as only a general guide. The
contractor has the responsibility to determine the dimensions and
type of foundation demanded by the soil conditions at the
installation site.
- If you are burying them to keep the batteries cool then you won't
need the insulation. However, if they are burying them to keep them from
view then I would suggest using the insulation.
Enclosures Quality, Environmental and Safety
Management Manual Thermal Management.
|
Poles
Area Lighting Poles
All poles are designed for ground mounting.
Local soil conditions determine the type of
foundation required for each pole.
To select a pole, first add the weights and
EPA's of the mounting brackets and luminaires to
get the combined load per pole. The wind speed
is determined by local conditions. The mounting
height can be determined by the luminarie
manufacturer's specifications. Choose the wind
speed category, then the column that exceeds the
combined load in weight. Move down the column to
the desired weight, then to the first pole that
exceeds the combined load EPA. This should be
your best value. Remember the pole capacity must
exceed the combined load in both weight and EPA.
The pole capacity chart has been calculated with
mounting at ground level and 1.3 gust factor
included. No provisions have been made for
banners, pendants, signs, flags, overhead wiring
or other items that might be fastened to the
pole.
Local soil conditions determine the type of
foundation required for each pole. foundation in
Figure is given as only a general guide. The
contractor has the responsibility to determine
the dimensions and type of foundation demanded
by the soil conditions at the installation site.
The capacities shown are based on a 24" off
center load. This is usually the most
conservative configuration. We have extensive
charts for other wind, weight and luminaire
mountings. If we know your application, we can
provide you with the most economical pole.
|
|
Lighting
Bullet Proof Installation
POLE SELECTION
GUIDELINES WIND SPEED
Installation Picture Gallery
Technical
LED's LED Color Chart.
Technical information on Candela Lumens
